CORE

L3S1-10-20W-27K-WH

Linear, Integrated Non-Modular, Silicone-Injected - White, Side-Flex - 10' Section, 20W, 72 Lm/Ft, 2700K, 10-15V

IP67 Rating

3 years Warranty

Wattage

20W

Lumens

72 Lm / Ft

Temperature

2700K

Finish

White

Construction

Silicone-Injected

L3S1-10-20W-27K-WH
Overview

Small Profile Linear Light
Dimensions: 0.39" × 0.39"
Voltage: 12VAC | Wiring: Class 2

Standard Lengths Available:
1', 3', 5', 10', 15', 20', and 30'

Product Highlights:

  • Customizable Lengths: Field-cuttable at designated points with a minimum cut length of 2.81", allowing tailored installations.
  • Dual-End Power Leads: Offered in 5', 10', 15', 20', and 30' lengths. Both segments remain functional after cutting, reducing waste and enhancing flexibility.
  • Field-Installable End Caps: Easily attachable in the field when fixture is cut to length.
  • Durable Construction: Made from premium white high-temperature silicone with a dust-resistant coating for long-lasting performance.
  • UV-Stable Material: Engineered to resist yellowing and maintain clarity over time.
  • Optimized Light Output: Innovative internal diffuser minimizes LED pixels for a smooth, continuous glow.
  • Dimmable Functionality: Dimmable via MLV protocol
  • Flexible Design: Accommodates corner and curved installations with ease.
  • Mounting Solutions: Supported by a full range of specialized accessories for secure and versatile mounting.

IP67 Rating

3 years Warranty

Wattage

20W

Lumens

72 Lm / Ft

Temperature

2700K

Finish

White

Construction

Silicone-Injected

Lead Wire

3'

Voltage

10-15V

Beam Spread

120°

Volt-Amperes

20.64

RGB

No

CRI

80+

Rated Life

50,000 Hrs

Dimmable

Yes

Mounting

Ordered Separately

Box Quantity

10

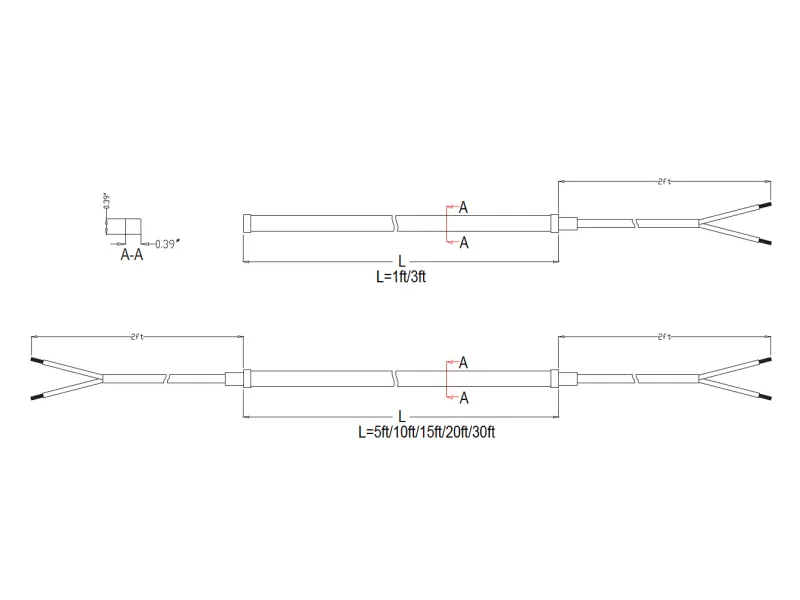

Technical diagram showing measurements and cross-section of a cable with dual Y-shaped ends and varying lengths.
a broken television remote
CORE offers simplicity in terms of standard industry features. The fixtures have defined CCT and, in most cases, beam spreads. They do not require a LumienPRO remote to control.

  • Two kelvin temperature options
  • Aluminum available in black or bronze powder-coat
  • Brass available in an antique brush finish
