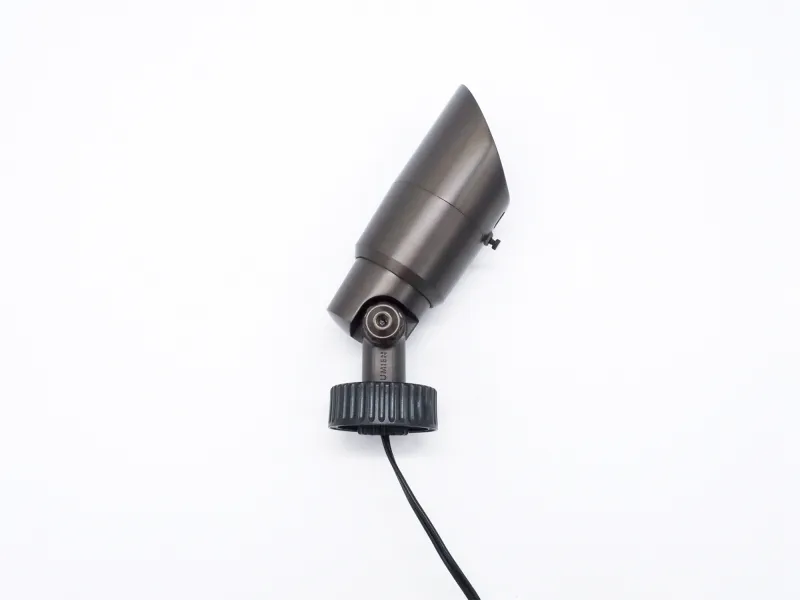

Black outdoor spotlight fixture with adjustable head and wired connection on white background

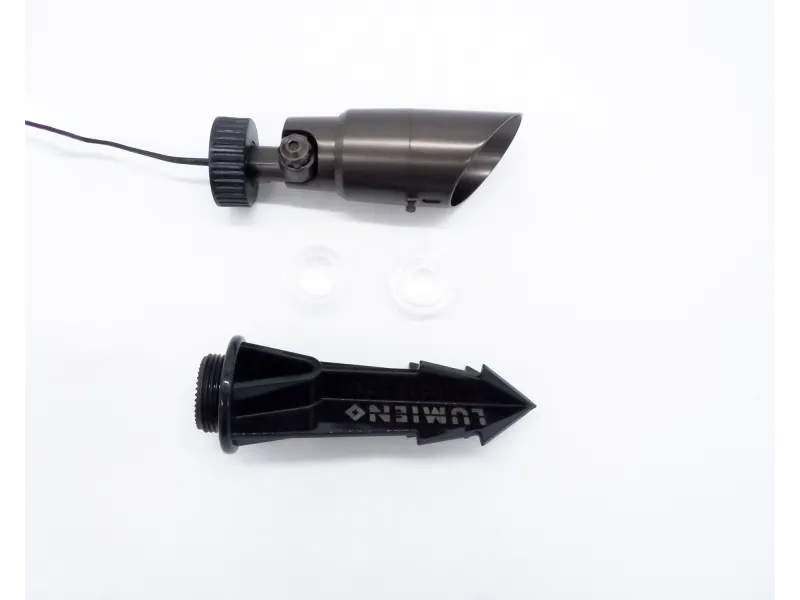

Disassembled outdoor spike light with black plastic stake, metal fixture, and two clear washers on white background.
Disassembled black metal coffee grinder parts on white background showing main body and grinding elements.
Close-up of a black metal bullet-style security camera on a white background

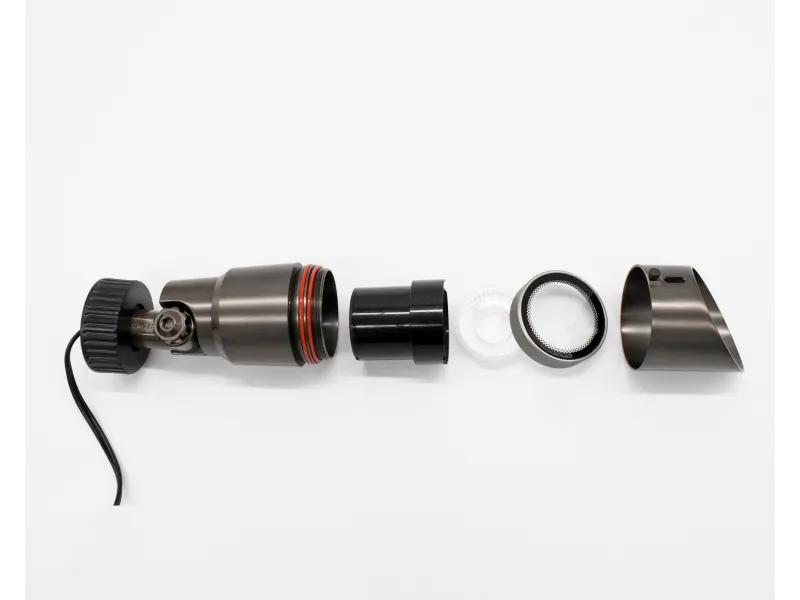

Disassembled black metal and plastic cylindrical device with seals and mesh filter parts on a white background

PRO

D9B1-10W-A

Directional, LumienPRO - RGBTW, Brass - Antique, Deco Brass Series Uplight (Includes 15°, 40°, 60° Optics), 10W, 2700-5700K: 388-482 Lm, R: 158 Lm, G: 345 Lm, B: 71 Lm, 10-15V

IP65 Rating

Light Source: 10 Years
Housing: Lifetime Warranty

Wattage

10

Lumens

27K-57K: 388-482 Lm, R: 158 Lm, G: 345 Lm, B: 71 Lm

Temperature

RGBTW - 2700-5700K

Finish

Antique

Construction

Brass

D9B1-10W-A
Overview

  • Offers adjustability through interchangeable optic lenses | Includes: 15°, 40°, 60°
  • Fixture is LumienPRO RGBTW | Tuneable from 2700K - 5700K | 12 Color Presets

IP65 Rating

Light Source: 10 Years
Housing: Lifetime Warranty

Wattage

10

Lumens

27K-57K: 388-482 Lm, R: 158 Lm, G: 345 Lm, B: 71 Lm

Temperature

RGBTW - 2700-5700K

Finish

Antique

Construction

Brass

Lead Wire

6'

Voltage

10-15V

Beam Spread

15°, 40°, 60°

Volt-Amperes

13.86

RGB

Yes

CRI

80+

Rated Life

50,000 Hrs

Dimmable

With LumienPRO Remote

Mounting

LAP-002 (8" Stake)

Box Quantity

12

Fixture Weight

2.53

Directional, LumienPRO - RGBTW, Brass - Antique, Deco Brass Series Uplight (Includes 15°, 40°, 60° Optics), 10W, 2700-5700K: 388-482 Lm, R: 158 Lm, G: 345 Lm, B: 71 Lm, 10-15V

D9B1-10W-A
IES File (IES)

D9B1-10W-A
IES File (pdf)

D9B1-10W-A
IES File (pdf)

D9B1-10W-A
Spec Sheet

D9B1-10W-A
Instruction Manual

a large brick house

LumienPRO

PRO: PRO gives you all the tools to fine tune your projects without having Bluetooth or WiFi connection issues. Use our LumienPRO remote to control these fixtures - no need for an app or mobile device. They are dimmable 0-100%. There are three options to PRO:

  • WW (2700K - 5700K)
  • RGBW (12 Color Presets + Defined CCT)
  • RGBWW (12 Color Presets + 2700K - 5700K).
